Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX14850ASE+DGTL ISO 600VRMS 6CH GP 16SOIC Analog Devices Inc./Maxim Integrated |
18,626 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|

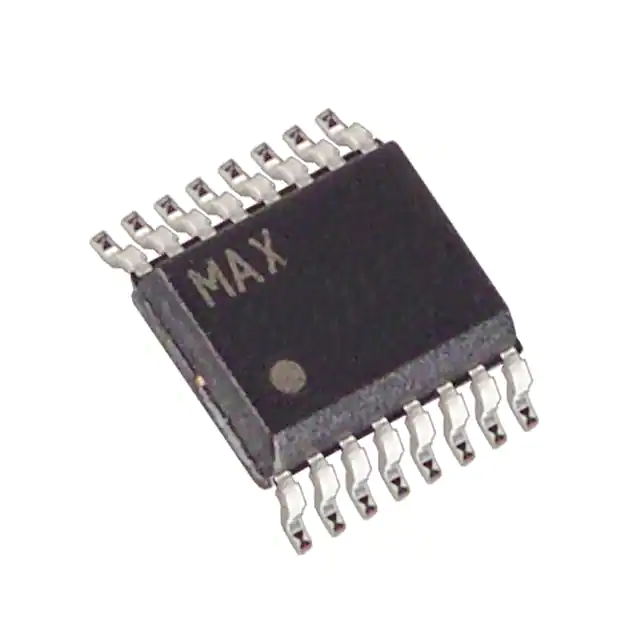

MAX14850AEE+DGTL ISO 600VRMS 6CH GP 16SSOP Analog Devices Inc./Maxim Integrated |
9,661 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
MAX22246CAWA+REINFORCED, FAST, LOW-POWER 2-CH Analog Devices Inc./Maxim Integrated |
1,227 |
|
Datasheet
|
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | CAN, RS232, RS422, RS485 | No | 2 | 1/1 | Unidirectional | 5000Vrms | 50kV/µs (Typ) | 200Mbps | 9.5ns, 9.9ns | 2ns | 0.8ns, 1ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
MAX22166CAEE+6 CHANNEL REINFORCED ISOLATOR Analog Devices Inc./Maxim Integrated |
1,007 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 6 | 6/0 | Unidirectional | 3000Vrms | 50kV/µs (Typ) | 200Mbps | 9.5ns, 9.9ns | 2ns | 0.8ns, 1ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
MAX22245BAWA+2-CHANNEL REINFORCED DIIGITAL IS Analog Devices Inc./Maxim Integrated |
2,644 |
|
Datasheet
|
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | CAN, RS232, RS422, RS485 | No | 2 | 2/0 | Unidirectional | 5000Vrms | 50kV/µs (Typ) | 25Mbps | 30.7ns, 32.1ns | 4ns | 0.8ns, 1ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
MAX12931BASA+TDGTL ISO 3750VRMS 2CH GP 8SOIC Analog Devices Inc./Maxim Integrated |
5,778 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3750Vrms | 50kV/µs (Typ) | 25Mbps | 32.5ns, 33.6ns | 4ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
MAX14850ASE+TDGTL ISO 600VRMS 6CH GP 16SOIC Analog Devices Inc./Maxim Integrated |
14,675 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14850AEE+TDGTL ISO 600VRMS 6CH GP 16SSOP Analog Devices Inc./Maxim Integrated |
3,564 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
MAX14851AEE+DGTL ISO 600VRMS 6CH GP 16QSOP Analog Devices Inc./Maxim Integrated |
1,335 |
|
Datasheet
|
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 3.2kV/µs | 2Mbps, 50Mbps | 11.6ns, 11.8ns | 2.9ns | 5ns, 5ns (Max) | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
MAX14930EASE+DGTL ISO 2750VRMS 4CH GP 16SOIC Analog Devices Inc./Maxim Integrated |
600 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2750Vrms | 25kV/µs (Typ) | 25Mbps | 27.5ns, 28.8ns | 2.6ns | 2ns, 2ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
