Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBLS2001S,115TRANS NPN PREBIAS/PNP 1.5W 8SO NXP USA Inc. |
5,343 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 3A | 50V, 20V | 2.2kOhms | 2.2kOhms | 30 @ 20mA, 5V / 150 @ 2A, 2V | 150mV @ 500µA, 10mA / 355mV @ 300mA, 3A | 1µA, 100nA | 100MHz | 1.5W | - | - | Surface Mount | 8-SO |
|
PBLS4001V,115TRANS NPN PREBIAS/PNP SOT666 NXP USA Inc. |
9,996 |
|
Datasheet
|
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 40V | 2.2kOhms | 2.2kOhms | 30 @ 20mA, 5V / 150 @ 100mA, 2V | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 1µA | 300MHz | 300mW | - | - | Surface Mount | SOT-666 |
|
PUMH2,115NEXPERIA PUMH2 - SMALL SIGNAL BI NXP Semiconductors |
393,838 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | 6-TSSOP |
|
PUMB24,115NEXPERIA PUMB24 - SMALL SIGNAL B NXP Semiconductors |
290,303 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 20mA | 50V | 100kOhms | 100kOhms | 80 @ 5mA, 5V | 150mV @ 250µA, 5mA | 1µA | - | 300mW | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
|
PUMB2,115NEXPERIA PUMB2 - SMALL SIGNAL BI NXP Semiconductors |
80,104 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
PUMB14,115NOW NEXPERIA PUMB14 - SMALL SIGN NXP USA Inc. |
66,000 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | - | 100 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-363 |
|
|
PUMB9,115NEXPERIA PUMB9 - SMALL SIGNAL BI NXP Semiconductors |
21,635 |
|
Datasheet
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 300mW | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
PUMD3/ZL,165PUMD3 - NPN/PNP RESISTOR-EQUIPPE NXP USA Inc. |
260,000 |
|
Datasheet
|
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PUMF12,115NEXPERIA PUMF12 - SMALL SIGNAL B NXP Semiconductors |
125,840 |
|
Datasheet
|
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

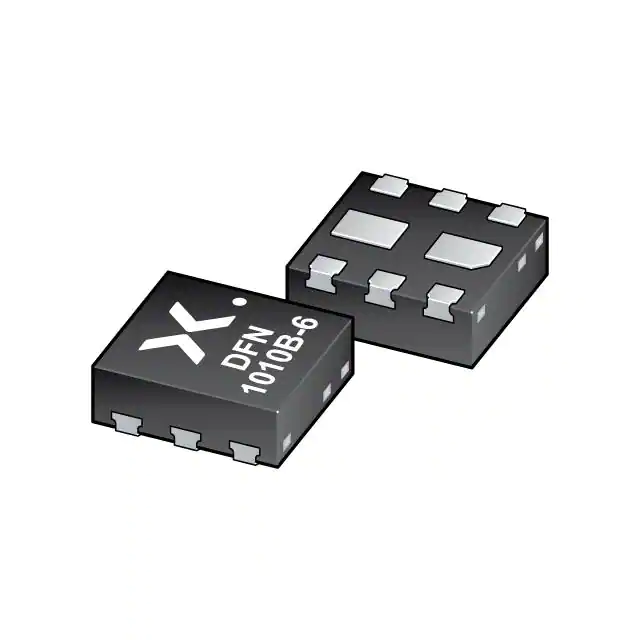

PQMD12ZNOW NEXPERIA PQMD - SMALL SIGNAL NXP USA Inc. |
939,730 |
|
Datasheet
|
- | 6-XFDFN Exposed Pad | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 100nA (ICBO) | 230MHz, 180MHz | 350mW | - | - | Surface Mount | DFN1010B-6 |
