Balun(1165)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CX2074NLTBALUN 1MHZ-500MHZ 1:4 6SMD |
5,746 |
|
Datasheet
|
- | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | 1MHz ~ 500MHz | 1:4 | - | 0.6dB | - | Surface Mount |
|
TC4-19X+1:4 CORE & WIRE TRANSFORMER, 10 |
3,804 |
|
Datasheet
|
- | 5-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 1.9GHz | 1:4 | 6° | 3dB | 7.01dB | Surface Mount |
|
TCM4-14+1:4 CORE & WIRE TRANSFORMER, 200 |
1,307 |
|
Datasheet
|
- | 6-SMD Module | Tape & Reel (TR) | Active | 200MHz ~ 1.4GHz | 1:4 | - | 3dB | 5.52dB | Surface Mount |
|
MABA-010655-CF1A40TRANSFORMER 1:1 |
4,381 |
|
Datasheet
|
- | 6-SMD Module | Tape & Reel (TR) | Active | 1MHz ~ 100MHz | 1:1 | - | 0.2dB | -30dB | Surface Mount |
|
MABAES0031TRANSFORMER, 4:1 |
2,729 |
|
Datasheet
|
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 650MHz | 1:4 | 10° | 2.0dB | - | Surface Mount |
|

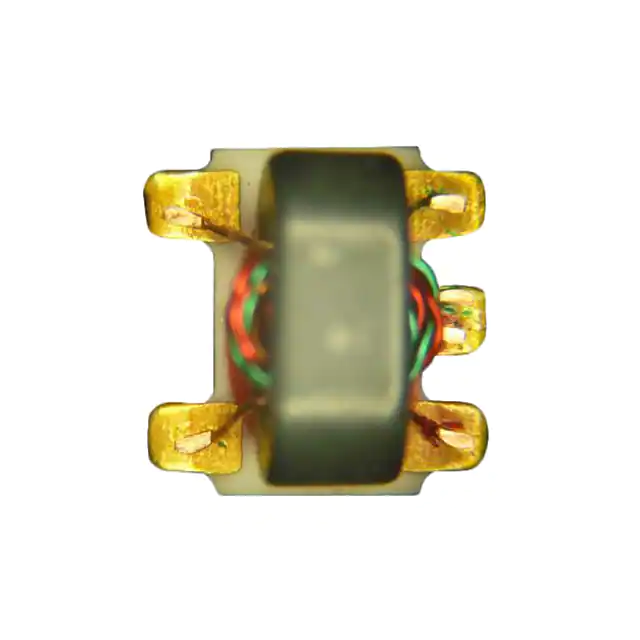

MABA-007237-ETC410BALUN 1MHZ-350MHZ 1:4 6SMD FLAT |
1,561 |
|
Datasheet
|
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 1MHz ~ 350MHz | 1:4 | 5° | 1.2dB | - | Surface Mount |
|
|
TC4-6TX+1:4 CORE & WIRE TRANSFORMER, 1.5 |
1,414 |
|
Datasheet
|
- | 5-SMD Module | Tape & Reel (TR) | Active | 1.5MHz ~ 600MHz | 1:4 | - | 3dB | 9.91dB | Surface Mount |
|
TC4-6T+1:4 CORE & WIRE TRANSFORMER, 1.5 |
1,105 |
|
Datasheet
|
- | 5-SMD Module | Tape & Reel (TR) | Active | 1.5MHz ~ 600MHz | 1:4 | - | 3dB | 9.91dB | Surface Mount |
|
CX2044LNLTBALUN 5MHZ-500MHZ 50/50 5SMD |
12,653 |
|
Datasheet
|
- | 5-SMD | Tape & Reel (TR) | Active | 5MHz ~ 500MHz | 1.5:1 | - | 0.5dB | 15dB | Surface Mount |
|
CX2024NLBALUN 10MHZ-1GHZ 1:1 6SMD |
799 |
|
Datasheet
|
- | 6-SMD | Tray | Active | 10MHz ~ 1GHz | 1:1 | 20° | 1.0dB | 16dB | Surface Mount |
|
CX2039LNLTBALUN 4.5MHZ-1.5GHZ 50/50 5SMD |
1,151 |
|
Datasheet
|
- | 5-SMD Module | Tape & Reel (TR) | Active | 4.5MHz ~ 1.5GHz | 50 / 50Ohm | - | 2.0dB | -30dB | Surface Mount |
|
|
CX2049LNLBALUN 250KHZ-500MHZ 5SMD MODULE |
975 |
|
Datasheet
|
- | 5-SMD Module | Tray | Active | 250kHz ~ 500MHz | - | - | 1.2dB | - | Surface Mount |
|

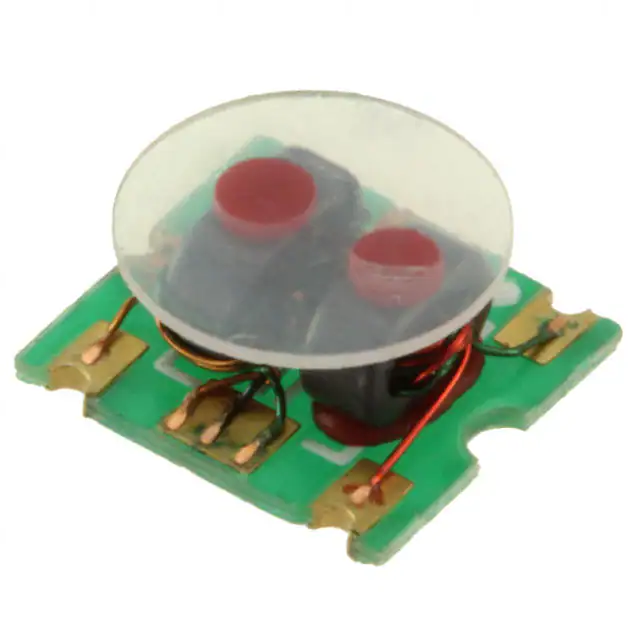

MABA-011029BALUN 5MHZ-1.2GHZ 50/75 5SMD MOD |
2,852 |
|
Datasheet
|
- | 5-SMD Module | Tape & Reel (TR) | Active | 5MHz ~ 1.2GHz | 50 / 75Ohm | - | 1.6dB | 12dB | Surface Mount |
|
TCW1-2700+1:1 LTCC TRANSFORMER, 700 - 2700 |
3,026 |
|
Datasheet
|
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 700MHz ~ 2.7GHz | 50 / 50Ohm | 12° | 2.0dB | 9.01dB | Surface Mount |
|
|
TCW1-6000+1:1 LTCC TRANSFORMER, 3200 - 600 |
2,686 |
|
Datasheet
|
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 3.2GHz ~ 6GHz | 50 / 50Ohm | 10° | 2.0dB | 7.99dB | Surface Mount |
|
TCO1-462+1:1 LTCC TRANSFORMER, 3300 - 590 |
2,507 |
|
Datasheet
|
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 3.3GHz ~ 5.9GHz | 1:1 | 10° | 0.8dB | 13dB | Surface Mount |
|
|
TCW2-6000+1:2 LTCC TRANSFORMER, 3100 - 600 |
1,921 |
|
Datasheet
|
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 3.1GHz ~ 6GHz | 1:2 | 11° | 1.8dB | 9.49dB | Surface Mount |
|
TCM3-452X+1:3 CORE & WIRE TRANSFORMER, 20 |
890 |
|
Datasheet
|
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 20MHz ~ 4.5GHz | 1:3 | 4° | 3dB | 11.11dB | Surface Mount |
.jpg)
|
BD0205F5050AHFBALUN 70MHZ-1GHZ 50/50 1608 |
13,296 |
|
Datasheet
|
Xinger® | 1608 (4121 Metric) | Tape & Reel (TR) | Active | 70MHz ~ 1GHz | 50 / 50Ohm | 1° | 3.4dB | 4dB | Surface Mount |
|
HHM1944A4MULTILAYER BALUN FOR 698-960MHZ |
9,699 |
|
Datasheet
|
- | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 698MHz ~ 960MHz | 50 / 100Ohm | 180° ±13° | 1.0dB | 15dB | Surface Mount |
