Automotive Relays(1882)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JSM1AF-12V-5RELAY AUTOMOTIVE SPST 15A 12V |
0 |
|
Datasheet
|
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8HN-1C2T-R DC12RELAY AUTOMOTIVE SPDT 10A 12V |
0 |
|
Datasheet
|
G8HN | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 8.5 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8JN-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet
|
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
VFMA-15F41-S01RELAY AUTOMOTIVE SPDT 12V |
0 |
|
Datasheet
|
VFM | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

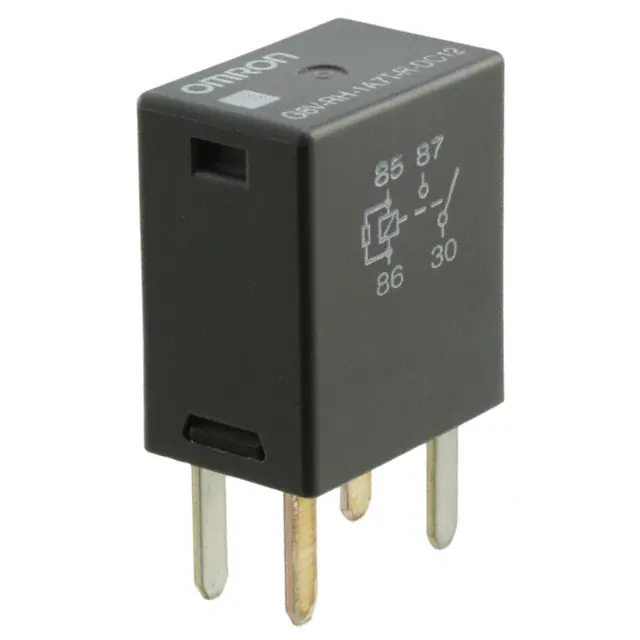

G8V-RH-1A7T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
0 |
|
Datasheet
|
G8V-RH | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

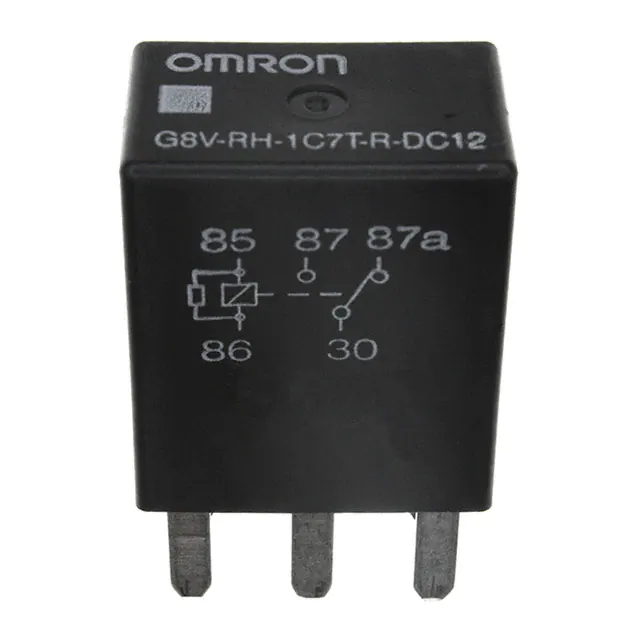

G8V-RH-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
Datasheet
|
G8V-RH | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

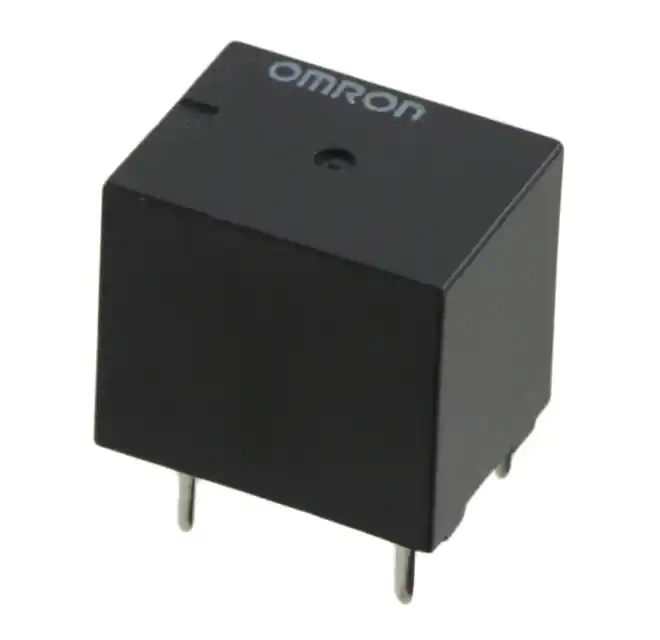

G8QN-1C4 DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8QN | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.6 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8N-1L-DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8N-1 | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
G8JR-1A7T-R-DC12RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Datasheet
|
G8JR | Tray | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
G8ND-2 DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8ND-2 | Tray | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8NW-2 DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8NW-2 | Tray | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
G8PE-1C4 DC12RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Datasheet
|
G8PE | Tray | Obsolete | Non Latching | 88.9 mA | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 6.8 VDC | 1 VDC | - | - | - | Through Hole | PC Pin | -30°C ~ 105°C |
|
|
G8SN-1C4P-DC12RELAY AUTOMOTIVE SPDT 10A 12V |
0 |
|
Datasheet
|
G8SN | Tray | Obsolete | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8JN-1C6T-R-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet
|
G8JN | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1C7T-MF-R-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet
|
G8JN | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1C6T-F-R-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet
|
G8JN | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1C7T-D-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Datasheet
|
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8N-1H DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8N-1 | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
G8NW-2H DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8NW-2 | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
G8QW-2C4-05 DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Datasheet
|
G8QW | Bulk | Active | Non Latching | 57 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.6 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
