Automotive Relays(1882)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

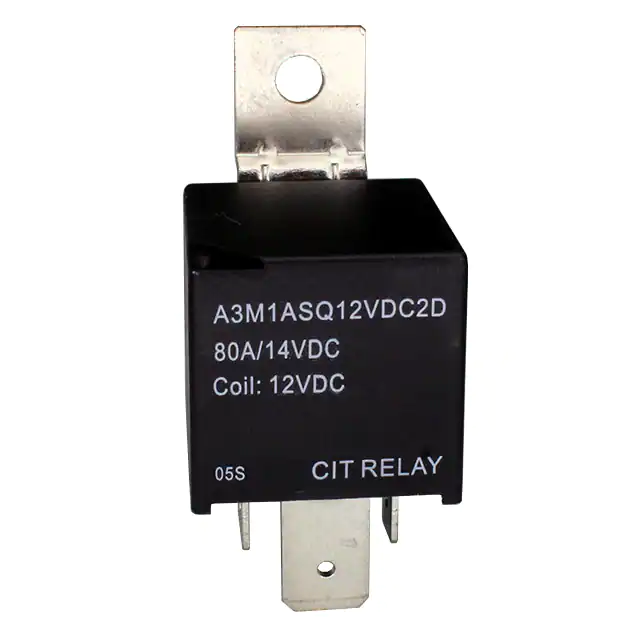

A3M1ASQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
1,359 |
|
Datasheet
|
A3M | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CM1A-R-12VRELAY AUTOMOTIVE SPST 35A 12V |
265 |
|
Datasheet
|
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
ACT512RELAY AUTOMOTIVE SPDTX2 20A 12V |
3,190 |
|
Datasheet
|
ACT | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
9,191 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
ACVN51212RELAY AUTOMOTIVE SPST 35A 12V |
1,131 |
|
Datasheet
|
ACVN | Bulk | Active | Non Latching | 66.7 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
CB1A-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
2,528 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC795-1C-C2-12S-N-XRELAY AUTOMOTIVE SPDT 80A 12V |
2,383 |
|
Datasheet
|
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1A-R-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
433 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
4-1904124-3RELAY AUTOMOTIVE SPDT 30A 12V |
1,593 |
|
Datasheet
|
Micro Relay A | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1A-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
3,651 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
1393280-5RELAY AUTO SPST-NO 30A 12V |
5,219 |
|
Datasheet
|
Micro Relay K | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
CB1-P-24VRELAY AUTOMOTIVE SPDT 20A 24V |
1,624 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1-24VRELAY AUTOMOTIVE SPDT 20A 24V |
1,936 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1AH-12VRELAY AUTOMOTIVE SPST 70A 12V |
1,731 |
|
Datasheet
|
CB | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

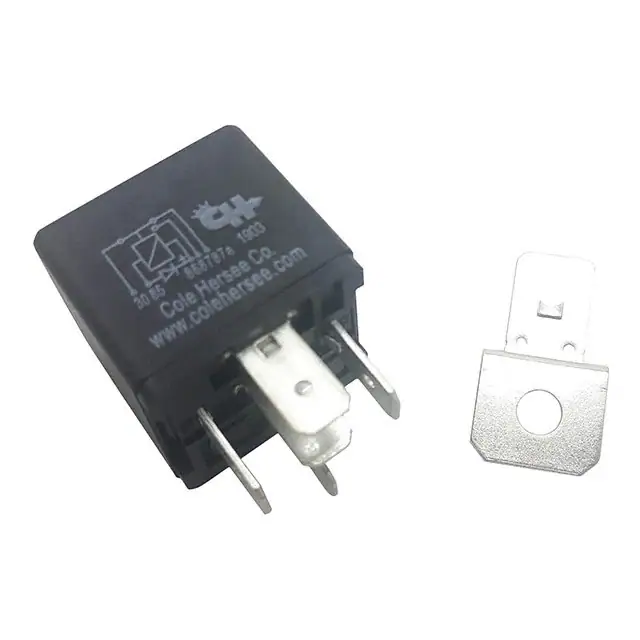

RC-400112-NNRELAY GEN PURPOSE SPDT 40A 12V |
1,157 |
|
Datasheet
|
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | - | Chassis Mount | Plug In | -40°C ~ 85°C |
|
7-1393302-5RELAY GEN PURPOSE SPST 40A 12V |
617 |
|
Datasheet
|
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC7150-1A-C2-12C-RN-XRELAY AUTOMOTIVE SPST 150A 12V |
1,218 |
|
Datasheet
|
- | Bag | Active | Non Latching | 258 mA | 12VDC | SPST-NO (1 Form A) | 150 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

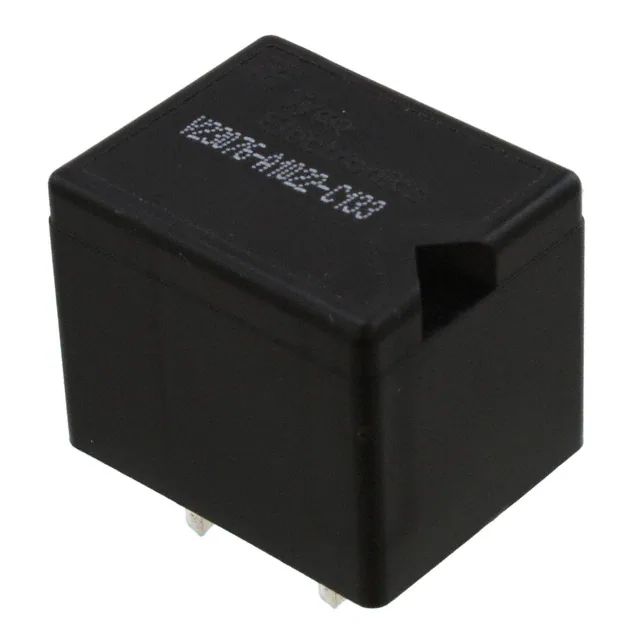

1393277-8RELAY AUTOMOTIVE SPDT 45A 24V |
1,600 |
|
Datasheet
|
V23076 | Bulk | Active | Non Latching | 66 mA | 24VDC | SPDT (1 Form C) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

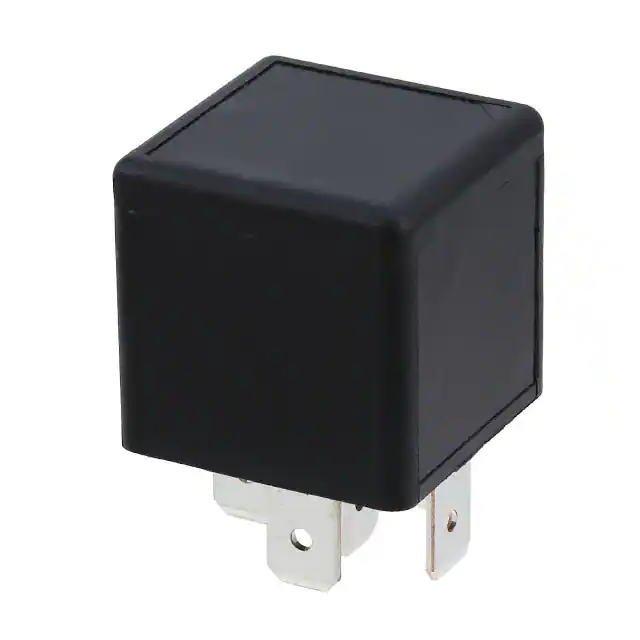

2-1393302-2RELAY AUTOMOTIVE SPDT 60A 12V |
2,140 |
|
Datasheet
|
F4 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

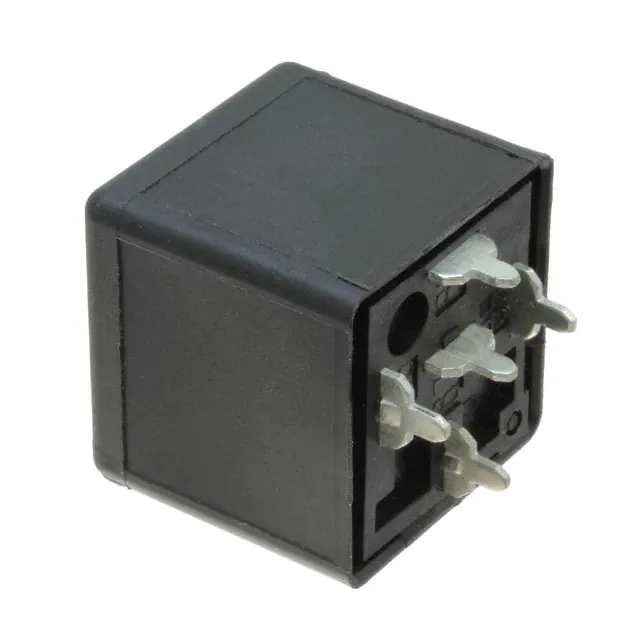

5-1393302-2RELAY GEN PURPOSE SPDT 20A 24V |
314 |
|
Datasheet
|
- | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
