Automotive Relays(1882)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1414992-7RELAY AUTOMOTIVE SPDT 40A 12V |
172 |
|
Datasheet
|
SRF-A | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
9-1393303-7RELAY AUTOMOTIVE SPST-NO 70A 24V |
324 |
|
Datasheet
|
F7 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

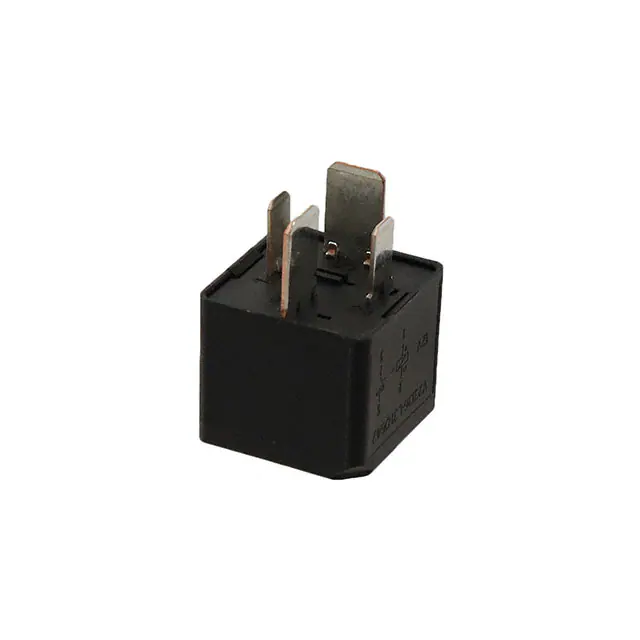

V23136-L0031-D642POWER FA V23136 |
663 |
|
Datasheet
|
F7 A | Bulk | Active | Latching, Single Coil | 480 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Max | 6 VDC | - | 1 ms | 2 ms | IP54 - Dust Protected, Water Resistant | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

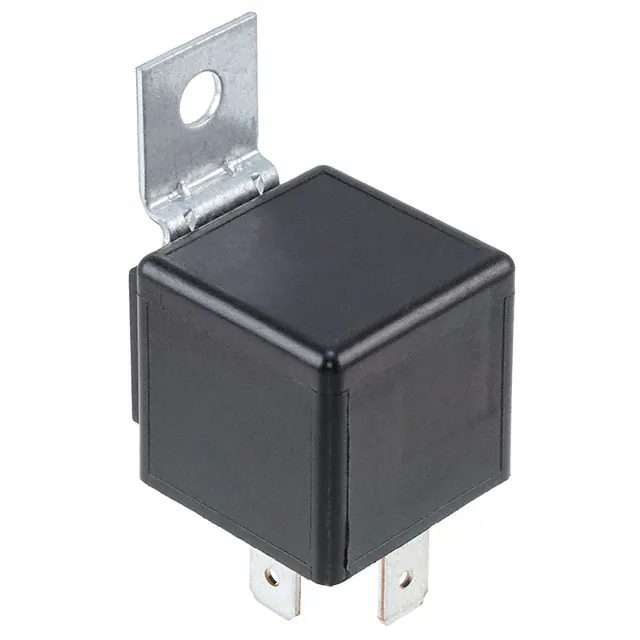

3-1393303-7RELAY AUTOMOTIVE SPST-NO 60A 24V |
3,203 |
|
Datasheet
|
F4 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
V23086C2001A403PCB 25A RELAYS |
792 |
|
Datasheet
|
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 25 A | - | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
1-1414122-0V23136J1004X050 |
107 |
|
Datasheet
|
F7 A | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Max | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
V23134J1052D642RELAY AUTOMOTIVE SPST-NO 70A 12V |
447 |
|
Datasheet
|
F7 | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC7150-1C-C2-12C-N-XRELAY AUTOMOTIVE SPDT 150A 12V |
296 |
|
Datasheet
|
- | Bag | Active | Non Latching | 240 mA | 12VDC | SPDT (1 Form C) | 150 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
5-1393302-1RELAY GEN PURPOSE SPDT 20A 24V |
1,099 |
|
Datasheet
|
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
2-1393302-3RELAY AUTOMOTIVE SPDT 60A 12V |
288 |
|
Datasheet
|
F4 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
3-1393303-4RELAY AUTOMOTIVE SPST-NO 60A 12V |
207 |
|
Datasheet
|
F4 | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1-1414168-0RELAY AUTOMOTIVE SPDT 24V |
209 |
|
Datasheet
|
- | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | - | - | 16 VDC | 4 VDC | 7 ms | 2 ms | - | - | - | -40°C ~ 105°C |
|
RC-700112-DNRELAY GEN PURPOSE SPDT 70A 12V |
160 |
|
Datasheet
|
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | Diode | Chassis Mount | Plug In | -40°C ~ 85°C |
|
2-1904058-5RELAY AUTO SPST-NO 20A 12V |
398 |
|
Datasheet
|
Mini K HV | Bulk | Active | Non Latching | 240 mA | 12VDC | SPST-NO (DM) (1 Form X) | 20 A | 400VDC - Nom | 6.9 VDC | 1.2 VDC | 2.5 ms | 1 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
V23132B2002X025HIGH CURRENT RELAYS & MODULES |
43 |
|
Datasheet
|
High Current Relay 150 | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 125°C |
|
2-1414939-2RELAY AUTO SPST-NO 130A 12V |
470 |
|
Datasheet
|
High Current Relay 150 | Bulk | Active | Non Latching | 324 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 125°C |
|

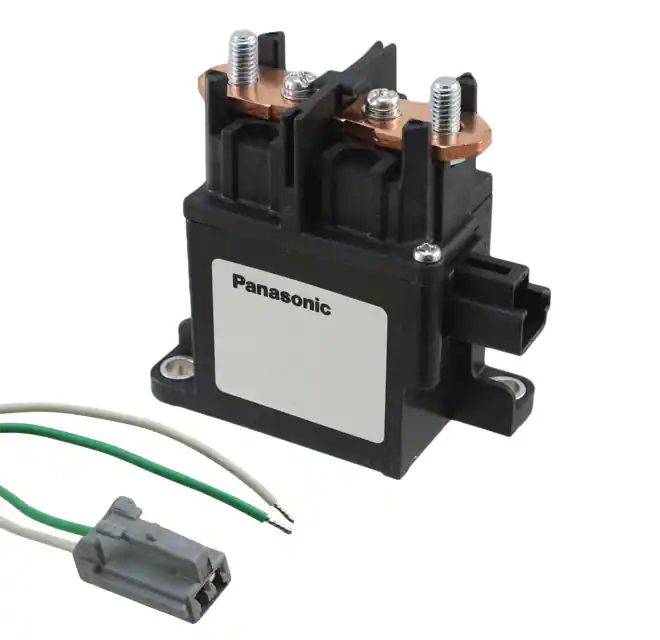

AEV14024WRELAY AUTOMOTIVE SPST 120A 24V |
163 |
|
Datasheet
|
AEV | Box | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 120 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
A41AS12VDCRELAY AUTOMOTIVE SPST 20A 12V |
561 |
|
Datasheet
|
A4 | Tube | Active | Non Latching | 82.8 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A101AS24VDCRELAY AUTOMOTIVE SPST 30A 24V |
474 |
|
Datasheet
|
A10 | Tube | Active | Non Latching | 20.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
AZ9891J-1C-12DSERELAY AUTOMOTIVE SPDT 30A 12V |
938 |
|
Datasheet
|
AZ9891J | Tray | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
