Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-AZF1H560CAP ALUM HYBRID 56UF 20% 50V TH |
0 |
|
Datasheet
|
ZF | Bulk | Obsolete | Hybrid | 56 µF | ±20% | 50 V | 35mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEH-AZF1H101CAP ALUM HYBRID 100UF 20% 50V TH |
0 |
|
Datasheet
|
ZF | Bulk | Obsolete | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

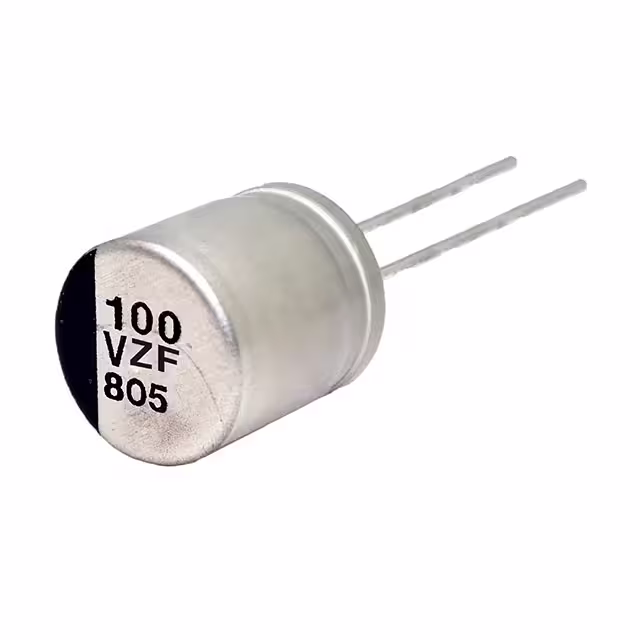

EEH-AZF1J330CAP ALUM HYBRID 33UF 20% 63V TH |
0 |
|
Datasheet
|
ZF | Bulk | Obsolete | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 65 mA @ 100 Hz | 650 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

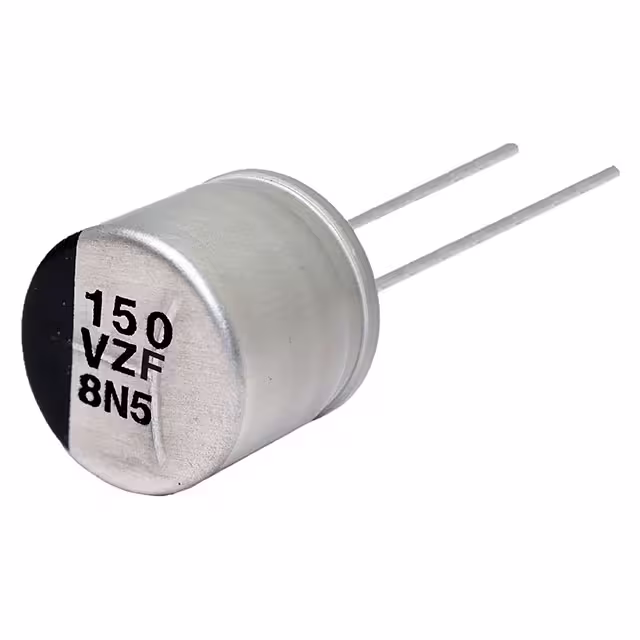

EEH-AZF1J560CAP ALUM HYBRID 56UF 20% 63V TH |
0 |
|
Datasheet
|
ZF | Bulk | Obsolete | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 126 mA @ 100 Hz | 840 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

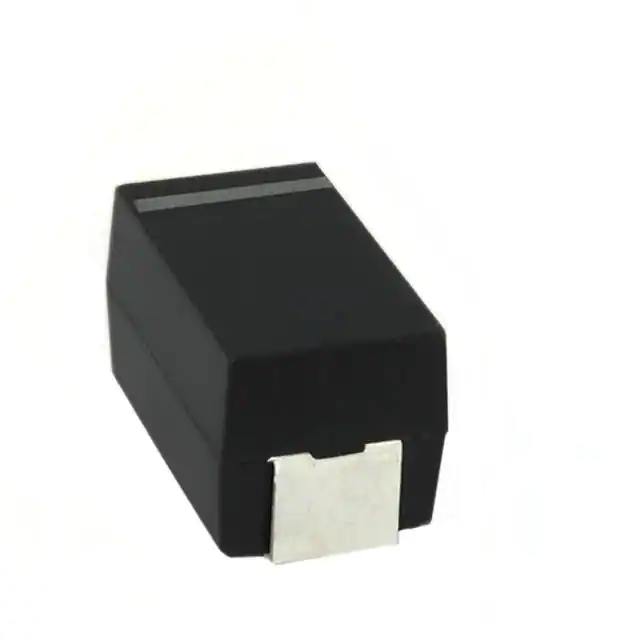

ECASD90D567M4R5K00CAP ALUM POLY 560UF 20% 2V SMD |
0 |
|
Datasheet
|
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

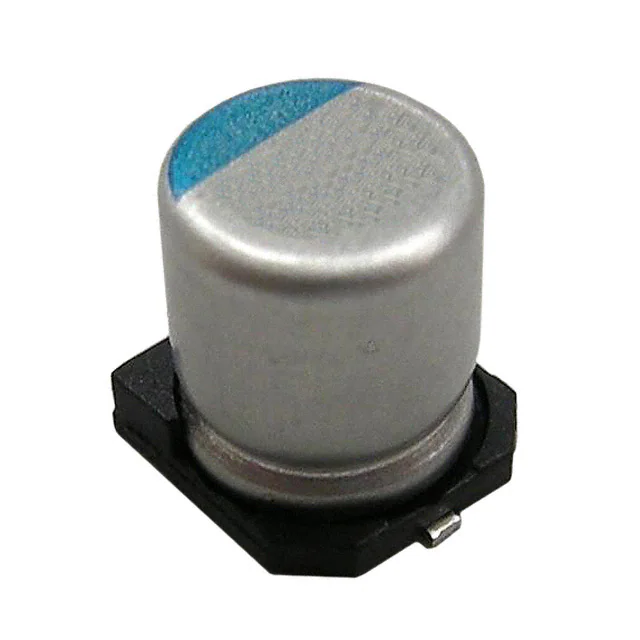

APXJ200ARA151MFA0GCAP ALUM POLY 150UF 20% 20V SMD |
0 |
|
Datasheet
|
NPCAP™-PXJ | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 150 µF | ±20% | 20 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSJ2R5ELL471ME08SCAP ALUM POLY 470UF 20% 2.5V TH |
0 |
|
Datasheet
|
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 520 mA @ 120 Hz | 5.2 A @ 100 kHz | - | 0.079" (2.00mm) | 0.213" Dia (5.40mm) | 0.374" (9.50mm) | - | Through Hole |
|
|
APSJ2R5ELL561MF08JCAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet
|
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 560 µF | ±20% | 2.5 V | 4mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 650 mA @ 120 Hz | 6.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|
|
APXJ250ARA820MFA0GCAP ALUM POLY 82UF 20% 25V SMD |
0 |
|
Datasheet
|
NPCAP™-PXJ | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APSJ2R5ELL561MF08SCAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet
|
NPCAP™-PSJ | Bulk | Discontinued at Digi-Key | Polymer | 560 µF | ±20% | 2.5 V | 4.5mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 620 mA @ 120 Hz | 6.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|
ECASD40D277M009KA0CAP ALUM POLY |
0 |
|
Datasheet
|
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OCV470M1CTR-0606SCAP ALUM POLY 47UF 20% 16V SMD |
0 |
|
Datasheet
|
OCV | Strip | Active | Polymer | 47 µF | ±20% | 16 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 82.5 mA @ 120 Hz | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HBV221M1ETR-0810SCAP ALUM HYB 220UF 20% 25V SMD |
0 |
|
- |
HBV | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

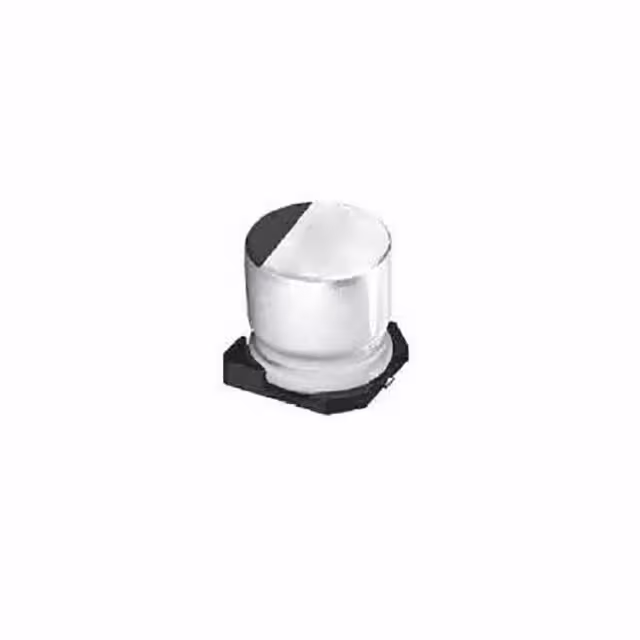

HBW221M1ETR-0810SCAP ALUM HYB 220UF 20% 25V SMD |
0 |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBW471M1CTR-1010SCAP ALUM HYB 470UF 20% 16V SMD |
0 |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HBW331M1ETR-1010SCAP ALUM HYB 330UF 20% 25V SMD |
0 |
|
- |
HBW | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PHA225KLP4110QE1CAP ALUM HYB 1100UF 10-30% 40V |
0 |
|
Datasheet
|
PHA225 | Bulk | Discontinued at Digi-Key | Hybrid | 1100 µF | -10%, +30% | 40 V | 80mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole |
|
|
PHA225MLP3560QE1CAP ALUM HYB 560UF 10-30% 63V TH |
0 |
|
Datasheet
|
PHA225 | Bulk | Discontinued at Digi-Key | Hybrid | 560 µF | -10%, +30% | 63 V | 92mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | High Vibration | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole |
|
|
ECASD41D476M040KH0CAP ALUM POLY 47UF 20% 20V SMD |
0 |
|
Datasheet
|
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 20 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD31E106M040KH0CAP ALUM POLY 10UF 20% 25V SMD |
0 |
|
Datasheet
|
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
