Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

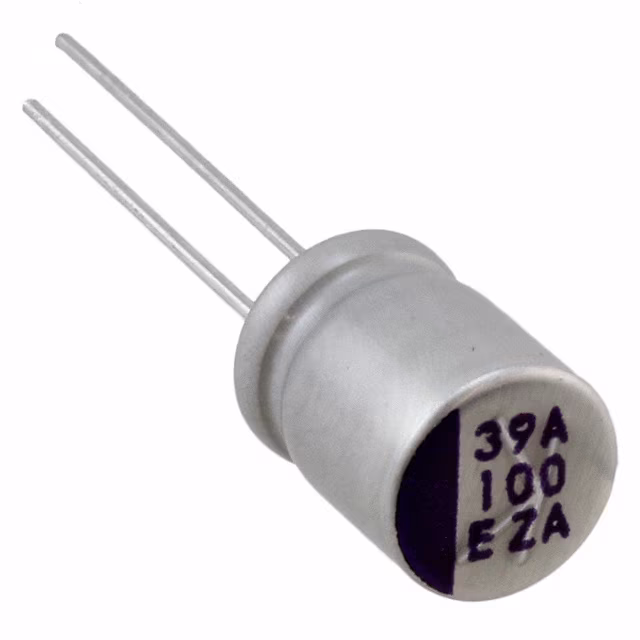

25PZA100M8X10CAP ALUM POLY 100UF 20% 25V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 100 µF | ±20% | 25 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|

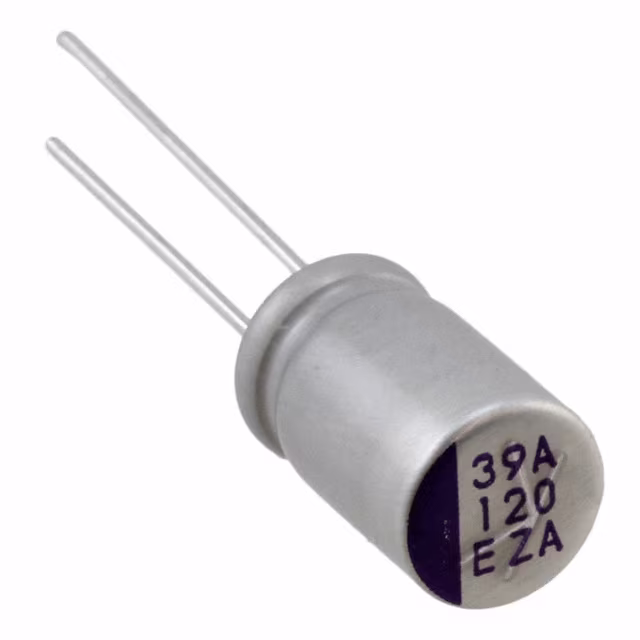

25PZA120M8X12.5CAP ALUM POLY 120UF 20% 25V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 120 µF | ±20% | 25 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
|

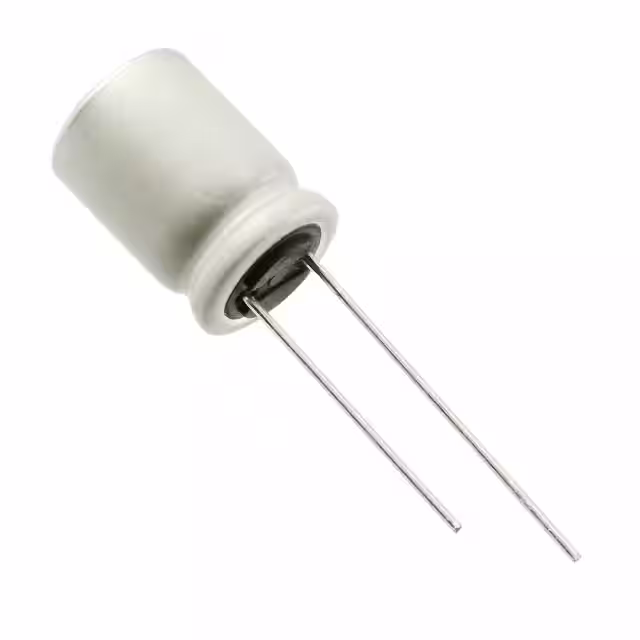

25PZA220M10X13CAP ALUM POLY 220UF 20% 25V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 220 µF | ±20% | 25 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|
35PZA56M8X10CAP ALUM POLY 56UF 20% 35V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 56 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
35PZA150M10X13CAP ALUM POLY 150UF 20% 35V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 150 µF | ±20% | 35 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|
63PZA22M8X10CAP ALUM POLY 22UF 20% 63V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
63PZA27M8X12.5CAP ALUM POLY 27UF 20% 63V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 27 µF | ±20% | 63 V | 33mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
63PZA47M10X13CAP ALUM POLY 47UF 20% 63V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 47 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|

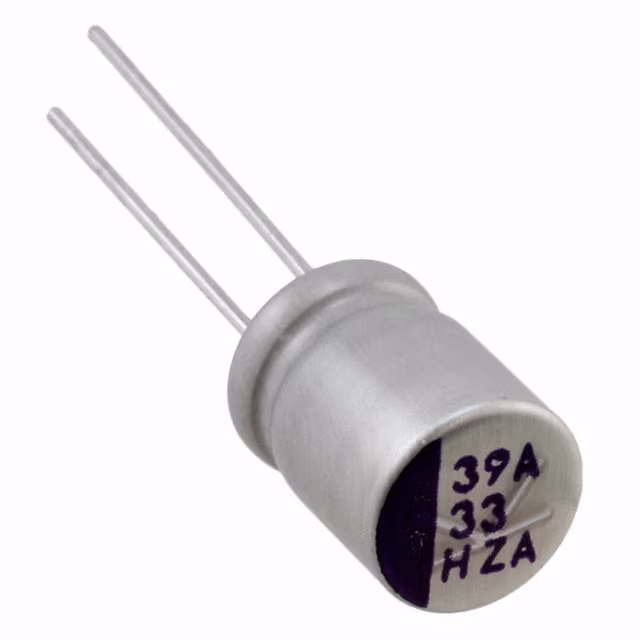

50PZA33M8X10CAP ALUM POLY 33UF 20% 50V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 33 µF | ±20% | 50 V | 32mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
35PZA82M8X12.5CAP ALUM POLY 82UF 20% 35V TH |
0 |
|
Datasheet
|
PZA | Bulk | Obsolete | Polymer | 82 µF | ±20% | 35 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

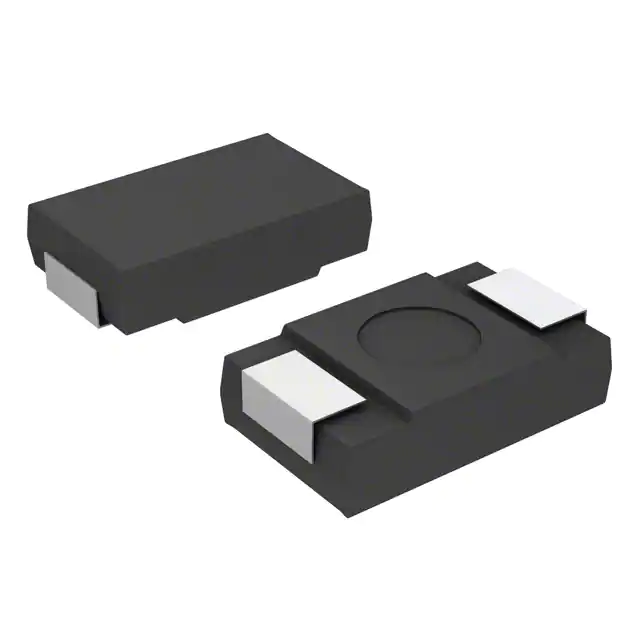

SPSX331M02R-4CAP ALUM POLY 330UF 20% 2V SMD |
0 |
|
Datasheet
|
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
SPSX471M0ERCAP ALUM POLY 470UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
SPSX471M0ER-4CAP ALUM POLY 470UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
SPSX561M02R-4CAP ALUM POLY 560UF 20% 2V SMD |
0 |
|
Datasheet
|
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|

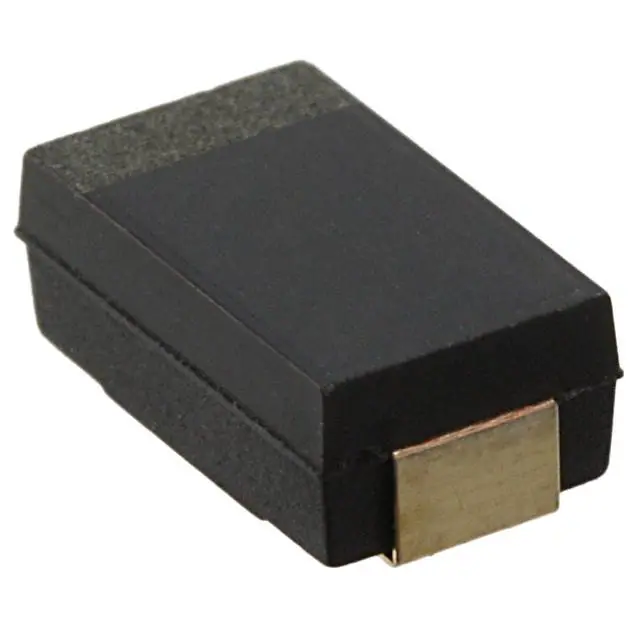

RUA1V120MLGCAP ALUM POLY 12UF 20% 35V SMD |
0 |
|
Datasheet
|
FPCAP, UA | Tape & Reel (TR) | Obsolete | Polymer | 12 µF | ±20% | 35 V | 70mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|

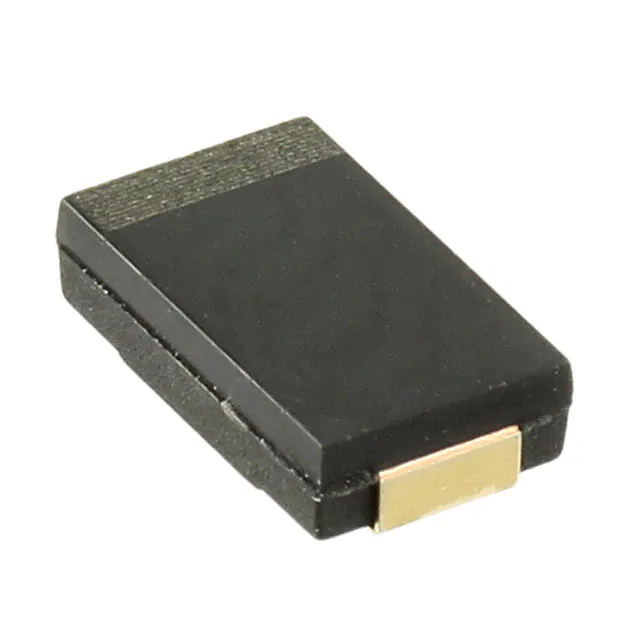

RUB0J101MLGCAP ALUM POLY 100UF 20% 6.3V SMD |
0 |
|
Datasheet
|
FPCAP, UB | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
RVC0D331MNGCAP ALUM POLY 330UF 20% 2V SMD |
0 |
|
Datasheet
|
FPCAP, VC | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | Surface Mount |
|
|
RVE0D331MNGCAP ALUM POLY 330UF 20% 2V SMD |
0 |
|
Datasheet
|
FPCAP, VE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | Surface Mount |
|
RWA0J331MEGCAP ALUM POLY 330UF 20% 6.3V SMD |
0 |
|
Datasheet
|
FPCAP, WA | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | - | Surface Mount |
|
|
RWA1C101MEGCAP ALUM POLY 100UF 20% 16V SMD |
0 |
|
Datasheet
|
FPCAP, WA | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 16 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | - | Surface Mount |
