Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESRE391M02XRCAP ALUM POLY 390UF 20% 2V SMD |
0 |
|
Datasheet
|
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 10mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRE391M0ER-FCAP ALUM POLY 390UF 20% 2.5V SMD |
0 |
|
Datasheet
|
ESRE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

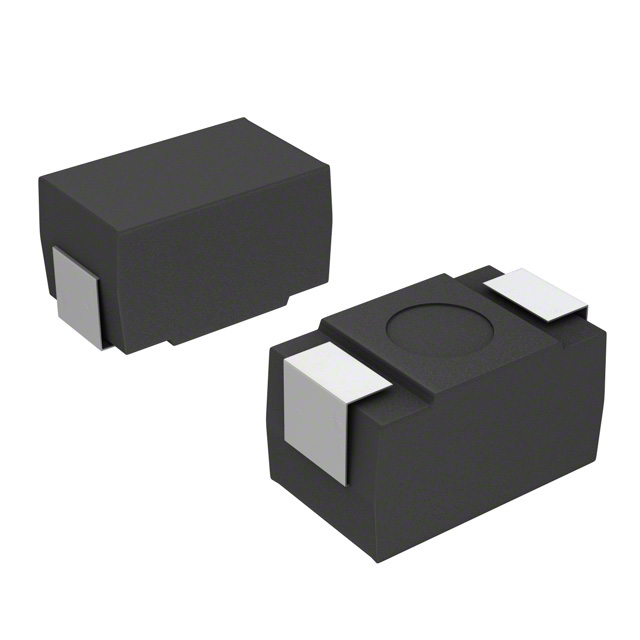

ESRH101M06RCAP ALUM POLY 100UF 20% 6.3V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ESRH101M08RCAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH121M04BCAP ALUM POLY 120UF 20% 4V SMD |
0 |
|
Datasheet
|
ESRH | Bulk | Obsolete | Polymer | 120 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH121M04RCAP ALUM POLY 120UF 20% 4V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH151M06RCAP ALUM POLY 150UF 20% 6.3V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH151M0EBCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
Datasheet
|
ESRH | Bulk | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH151M0ERCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH181M02RCAP ALUM POLY 180UF 20% 2V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH181M04BCAP ALUM POLY 180UF 20% 4V SMD |
0 |
|
Datasheet
|
ESRH | Bulk | Obsolete | Polymer | 180 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH271M02BCAP ALUM POLY 270UF 20% 2V SMD |
0 |
|
Datasheet
|
ESRH | Bulk | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH680M08BCAP ALUM POLY 68UF 20% 8V SMD |
0 |
|
Datasheet
|
ESRH | Bulk | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRH680M08RCAP ALUM POLY 68UF 20% 8V SMD |
0 |
|
Datasheet
|
ESRH | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
SPA101M04RCAP ALUM POLY 100UF 20% 4V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPA101M0ERCAP ALUM POLY 100UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPA151M02RCAP ALUM POLY 150UF 20% 2V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPA151M04RCAP ALUM POLY 150UF 20% 4V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPA151M0ERCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SPA181M02RCAP ALUM POLY 180UF 20% 2V SMD |
0 |
|
Datasheet
|
SPA | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
