Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

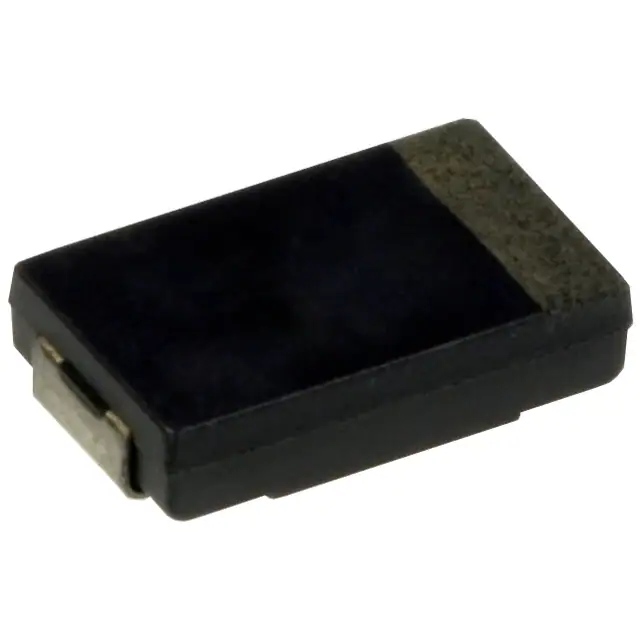

EEF-CD1B150RCAP ALUM POLY 15UF 20% 12.5V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 12.5 V | 50mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1B220RCAP ALUM POLY 22UF 20% 12.5V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1C2R2RCAP ALUM POLY 2.2UF 20% 16V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 2.2 µF | ±20% | 16 V | 110mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1C4R7RCAP ALUM POLY 4.7UF 20% 16V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 4.7 µF | ±20% | 16 V | 80mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD1C6R8RCAP ALUM POLY 6.8UF 20% 16V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 16 V | 70mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-UD0K680RCAP ALUM POLY 68UF 20% 8V SMD |
0 |
|
Datasheet
|
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-UE0K101RCAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
Datasheet
|
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0D101RCAP ALUM POLY 100UF 20% 2V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0D121RCAP ALUM POLY 120UF 20% 2V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0J680RCAP ALUM POLY 68UF 20% 6.3V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

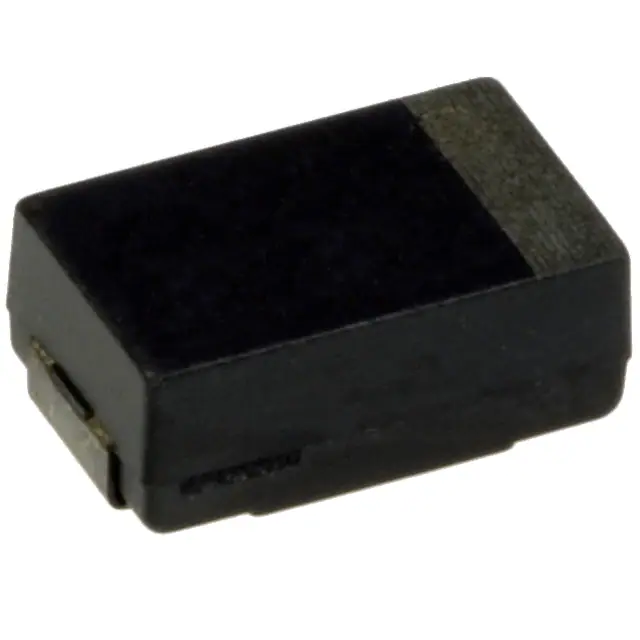

EEF-HD0D181RCAP ALUM POLY 180UF 20% 2V SMD |
0 |
|
Datasheet
|
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-WA0J221PCAP ALUM POLY 220UF 20% 6.3V SMD |
0 |
|
Datasheet
|
SP-Cap WA | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 6.3 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEF-WA1D151PCAP ALUM POLY 150UF 20% 20V SMD |
0 |
|
Datasheet
|
SP-Cap WA | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 20 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-HL0E820RCAP ALUM POLY 82UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SP-Cap HL | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 18mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HL0G560RCAP ALUM POLY 56UF 20% 4V SMD |
0 |
|
Datasheet
|
SP-Cap HL | Tape & Reel (TR) | Obsolete | Polymer | 56 µF | ±20% | 4 V | 18mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HL0K330RCAP ALUM POLY 33UF 20% 8V SMD |
0 |
|
Datasheet
|
SP-Cap HL | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 8 V | 18mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SL0J560RCAP ALUM POLY 56UF 20% 6.3V SMD |
0 |
|
Datasheet
|
SP-Cap SL | Tape & Reel (TR) | Obsolete | Polymer | 56 µF | ±20% | 6.3 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0K101RCAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
Datasheet
|
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0K151RCAP ALUM POLY 150UF 20% 8V SMD |
0 |
|
Datasheet
|
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0G101RCAP ALUM POLY 100UF 20% 4V SMD |
0 |
|
Datasheet
|
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
