Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLV1J470MDL1CAP ALUM POLY 47UF 20% 63V TH |
0 |
|
Datasheet
|
PLV | Bulk | Obsolete | Polymer | 47 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCX1C820MCL1GSCAP ALUM POLY 82UF 20% 16V SMD |
0 |
|
Datasheet
|
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
UGS1D821MP30816CAP ALUM POLY 820UF 20% 20V TH |
0 |
|
Datasheet
|
UGS | Active | Polymer | 820 µF | ±20% | 20 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

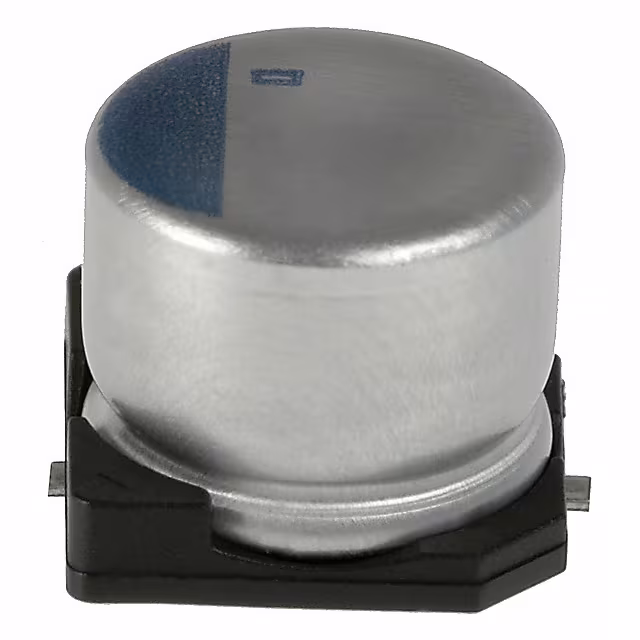

APXC6R3ARA221MH70GCAP ALUM POLY 220UF 20% 6.3V SMD |
0 |
|
Datasheet
|
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
2SW220MCAP ALUM POLY 220UF 20% 2V SMD |
0 |
|
Datasheet
|
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SXB150MCAP ALUM POLY 150UF 20% 2V SMD |
0 |
|
Datasheet
|
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SXB100MCAP ALUM POLY 100UF 20% 4V SMD |
0 |
|
Datasheet
|
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
TPUM1T221M656540TRCAP ALUM POLY 220UF 20% 12V SMD |
0 |
|
Datasheet
|
UM | Active | Polymer | 220 µF | ±20% | 12 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.157" (4.00mm) | - | Surface Mount | |
|
|
TPUM0J331M656540TRCAP ALUM POLY 330UF 20% 6.3V SMD |
0 |
|
Datasheet
|
UM | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.157" (4.00mm) | - | Surface Mount | |
|
|
TPUM1C181M656540TRCAP ALUM POLY 180UF 20% 16V SMD |
0 |
|
Datasheet
|
UM | Active | Polymer | 180 µF | ±20% | 16 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.157" (4.00mm) | - | Surface Mount | |
|
PCJ0E152MCL1GSCAP ALUM POLY 1500UF 20% 2.5V |
0 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLE0E152MDO1CAP ALUM POLY 1500UF 20% 2.5V TH |
0 |
|
Datasheet
|
PLE | Bulk | Not For New Designs | Polymer | 1500 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEF-CX0E391RCAP ALUM POLY 390UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCJ0E102MCL1GSCAP ALUM POLY 1000UF 20% 2.5V |
0 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.26 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0E152MCL6GSCAP ALUM POLY 1500UF 20% 2.5V |
0 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
4SXE82MCAP ALUM POLY 82UF 20% 4V SMD |
0 |
|
Datasheet
|
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
HHXA160ARA271MHA0GCAP ALUMHYB 270UF 20% 16V SMD |
0 |
|
Datasheet
|
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 270 µF | ±20% | 16 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
72SXE82M+TCAP ALUM POLY 82UF 20% 72V TH |
0 |
|
Datasheet
|
OS-CON™, SXE | Tape & Box (TB) | Active | Polymer | 82 µF | ±20% | 72 V | 28mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 49 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
MAL218297803E3CAP ALUM HYBRID 33UF 20% 63V SMD |
0 |
|
- |
182 CPHZ | Box | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
ESRE221M0EBCAP ALUM POLY 220UF 20% 2.5V SMD |
0 |
|
Datasheet
|
ESRE | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
