Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X107M010ATE010E015CAP ALUM POLY 100UF 20% 10V SMD |
0 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X107M010ATE0152478CAP ALUM POLY 100UF 20% 10V SMD |
0 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCR1H121MCS1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
0 |
|
Datasheet
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PCG0G221MCL1GSCAP ALUM POLY 220UF 20% 4V SMD |
0 |
|
Datasheet
|
PCG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
2SXE100MCAP ALUM POLY 100UF 20% 2V SMD |
0 |
|
Datasheet
|
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870235174004CAP ALUM POLY 680UF 20% 6.3V TH |
0 |
|
Datasheet
|
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
MAL218697512E3CAP ALUM POLY 560UF 20% 16V SMD |
0 |
|
Datasheet
|
186 CPNT | Box | Active | Polymer | 560 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
MAL218597556E3CAP ALUM POLY 330UF 20% 20V SMD |
0 |
|
- |
185 CPNZ | Box | Active | Polymer | 330 µF | ±20% | 20 V | 23mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
MAL218197002E3CAP ALUM POLY 82UF 20% 35V SMD |
0 |
|
Datasheet
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 29 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218197202E3CAP ALUM POLY 270UF 20% 20V SMD |
0 |
|
Datasheet
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | 21 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
MAL218197602E3CAP ALUM POLY 150UF 20% 25V SMD |
0 |
|
Datasheet
|
181 CPL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 28 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
A700X227M006ATE0157280CAP ALUM POLY 220UF 20% 6.3V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218497564E3CAP ALUM POLY 390UF 20% 20V SMD |
0 |
|
Datasheet
|
184 CPNS | Box | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCH1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD |
0 |
|
Datasheet
|
PCH | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A700X227M004ATE009CAP ALUM POLY 220UF 20% 4V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X107M008ATE0102478CAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A700X477M2R5ATE007CAP ALUM POLY 470UF 20% 2.5V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700X567M002ATE009CAP ALUM POLY 560UF 20% 2V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

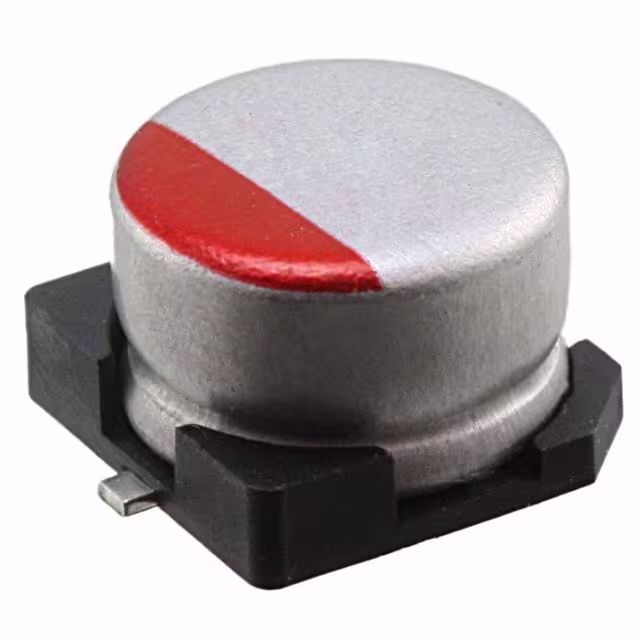

RSL1E150MCN1GBCAP ALUM POLY 15UF 20% 25V SMD |
0 |
|
Datasheet
|
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 25 V | 55mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.177" (4.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
EEH-ZA1V330VCAP ALUM HYBRID 33UF 20% 35V SMD |
0 |
|
Datasheet
|
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
