Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESRD151M0EBCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
Datasheet
|
ESRD | Bulk | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RPS1C331MCM1MSCAP ALUM POLY 820UF 20% 6.3V SMD |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RNL1C152MDSASQCAP ALUM |
0 |
|
Datasheet
|
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAL218697511E3CAP ALUM POLY 390UF 20% 16V SMD |
0 |
|
- |
186 CPNT | Box | Active | Polymer | 390 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
A700D566M008ATE015CAP ALUM POLY 56UF 20% 8V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 8 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700D187M2R5ATE015CAP ALUM POLY 180UF 20% 2.5V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCL1C681MCL1GSCAP ALUM POLY 680UF 20% 16V SMD |
0 |
|
Datasheet
|
PCL | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE2R5ARA821MHC0GCAP ALUM POLY 820UF 20% 2.5V SMD |
0 |
|
Datasheet
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA160ARA220ME60GCAP ALUM POLY 22UF 20% 16V SMD |
0 |
|
Datasheet
|
NPCAP™-PXA | Tape & Reel (TR) | Discontinued at Digi-Key | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PCR1C221MCL4GSCAP ALUM POLY 220UF 20% 16V SMD |
0 |
|
Datasheet
|
PCR | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 16 V | 23mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | - | - | - | Surface Mount |
|
|
RHA1011561M016BCAP ALUM HYBRID 560UF 20% 16V TH |
0 |
|
Datasheet
|
RHA | Bulk | Active | Hybrid | 560 µF | ±20% | 16 V | 15mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 100 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RHA1009150M080BCAP ALUM HYBRID 15UF 20% 80V TH |
0 |
|
Datasheet
|
RHA | Bulk | Active | Hybrid | 15 µF | ±20% | 80 V | 70mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
PCL1E820MCL1GSCAP ALUM POLY 82UF 20% 25V SMD |
0 |
|
Datasheet
|
PCL | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
685AVG160MFBJCAP ALUM POLY 6.8UF 20% 160V TH |
0 |
|
Datasheet
|
AVG | Bulk | Active | Polymer | 6.8 µF | ±20% | 160 V | 130mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 36 mA @ 120 Hz | 720 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
RPS0G471MCN1GSCAP ALUM POLY 470UF 20% 4V SMD |
0 |
|
Datasheet
|
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

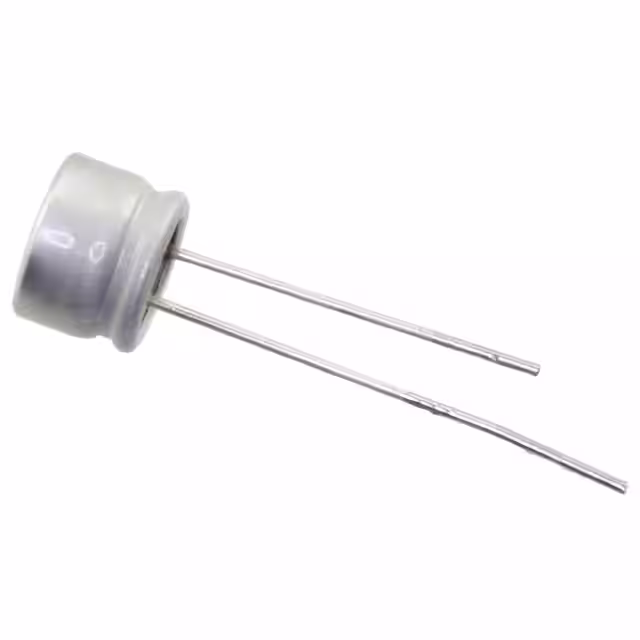

PLS0E681MCL2TDCAP ALUM POLY 680UF 20% 2.5V TH |
0 |
|
Datasheet
|
PLS | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 2.5 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
RHA1009100M100BCAP ALUM HYBRID 10UF 20% 100V TH |
0 |
|
Datasheet
|
RHA | Bulk | Active | Hybrid | 10 µF | ±20% | 100 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
A798D477M002PTE009CAP ALUM POLY 470UF 20% 2V SMD |
0 |
|
Datasheet
|
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.27 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | Surface Mount |
|
|
PCL1D181MCL1GSCAP ALUM POLY 180UF 20% 20V SMD |
0 |
|
Datasheet
|
PCL | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
UPE1E101MP51007UCAP ALUM POLY 100UF 20% 25V TH |
0 |
|
Datasheet
|
UPE | Active | Polymer | 100 µF | ±20% | 25 V | 21mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.335" (8.50mm) | - | Through Hole |
