Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-SD0E221RCAP ALUM POLY 220UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SD0E271RCAP ALUM POLY 270UF 20% 2.5V SMD |
0 |
|
Datasheet
|
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SEPC2700M+TCAP ALUM POLY 2700UF 20% 2.5V TH |
0 |
|
Datasheet
|
OS-CON™, SEPC | Tape & Box (TB) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 278 mA @ 120 Hz | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
UPE1E221MP30811UCAP ALUM POLY 220UF 20% 25V TH |
0 |
|
Datasheet
|
UPE | Active | Polymer | 220 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
URH1D821MP51016UCAP ALUM POLY 820UF 20% 20V TH |
0 |
|
Datasheet
|
URH | Active | Polymer | 820 µF | ±20% | 20 V | 16mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
RNL1C821MDSASQCAP ALUM HYBRID 270UF 20% 35V SM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAL218697406E3CAP ALUM POLY 560UF 20% 10V SMD |
0 |
|
- |
186 CPNT | Box | Active | Polymer | 560 µF | ±20% | 10 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount |
|
|
RHS1C681MCN1GSCAP ALUM POLY 680UF 20% 16V SMD |
0 |
|
Datasheet
|
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 495 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APA1012222M004RCAP ALUM POLY 2200UF 20% 4V SMD |
0 |
|
Datasheet
|
APA | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 4 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RHA1009101M040BCAP ALUM HYBRID 100UF 20% 40V TH |
0 |
|
Datasheet
|
RHA | Bulk | Active | Hybrid | 100 µF | ±20% | 40 V | 24mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 100 Hz | 2.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
UPR0E561MCG0508CAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet
|
UPR | Active | Polymer | 560 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.34 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
APXA6R3ARA680MF60GCAP ALUM POLY 68UF 20% 6.3V SMD |
0 |
|
Datasheet
|
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCR1H390MCL4GSCAP ALUM POLY 39UF 20% 50V SMD |
0 |
|
Datasheet
|
PCR | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 50 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCR1J220MCL4GSCAP ALUM POLY 22UF 20% 63V SMD |
0 |
|
Datasheet
|
PCR | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 63 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HTK-35V470MF61E-R2CAP ALUM HYB 47UF 20% 35V SMD |
0 |
|
- |
HTK | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

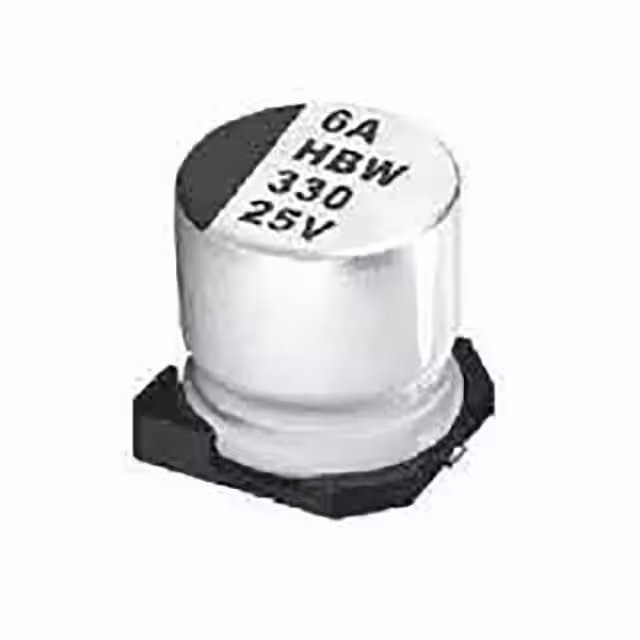

HBW101M1ETR-0608SCAP ALUM HYB 100UF 20% 25V SMD |
0 |
|
Datasheet
|
HBW | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
UPS1C102MP51012CAP ALUM POLY 1000UF 20% 16V TH |
0 |
|
Datasheet
|
UPS | Active | Polymer | 1000 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
A700X187M2R5ATE010CAP ALUM POLY 180UF 20% 2.5V SMD |
0 |
|
Datasheet
|
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
4SW220MXCAP ALUM POLY 220UF 20% 4V SMD |
0 |
|
Datasheet
|
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
|
6SW150MDR1-NDCAP ALUM POLY 150UF 20% 6.3V SMD |
0 |
|
Datasheet
|
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
