Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50PZE100M10X9CAP ALUM HYBRID 100UF 20% 50V TH |
1,895 |
|
Datasheet
|
PZE | Bulk | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
50PZJ220M10X15CAP ALUM HYBRID 220UF 20% 50V TH |
2,467 |
|
Datasheet
|
PZJ | Bulk | Active | Hybrid | 220 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 180 mA @ 100 Hz | 3.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
50PJV150M10X10.5CAP ALUMHYB 150UF 20% 50V SMD |
1,687 |
|
Datasheet
|
PJV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 110 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-SX0E471ERCAP ALUM POLY 470UF 20% 2.5V SMD |
3,782 |
|
Datasheet
|
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
158AVG016MGBJCAP ALUM POLY 1500UF 20% 16V TH |
1,936 |
|
Datasheet
|
AVG | Bulk | Active | Polymer | 1500 µF | ±20% | 16 V | 12mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1V680UVCAP ALUM HYBRID 68UF 20% 35V SMD |
527 |
|
Datasheet
|
ZKU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 180 mA @ 100 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXB350ARA151MHA0GCAP ALUMHYB 150UF 20% 35V SMD |
2,845 |
|
Datasheet
|
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

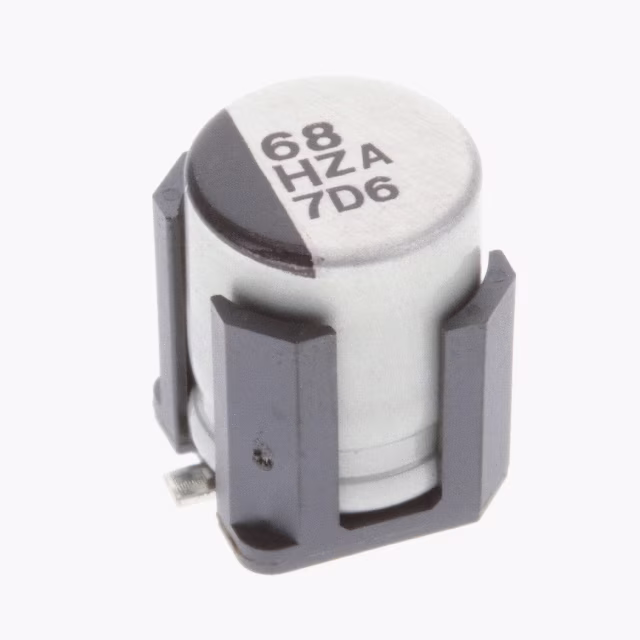

EEH-ZA1H680VCAP ALUM HYBRID 68UF 20% 50V SMD |
729 |
|
Datasheet
|
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZA1H330XPCAP ALUM HYBRID 33UF 20% 50V SMD |
57,066 |
|
Datasheet
|
ZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A767KN476M1HLAE029CAP ALUM POLY 47UF 20% 50V SMD |
27,289 |
|
Datasheet
|
A767 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Photo-Taped-Size-G12.jpg)
|
EEH-AZS1J101BCAP ALUM HYBRID 100UF 20% 63V TH |
1,851 |
|
Datasheet
|
ZS | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 63 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 450 mA @ 100 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
|
EEH-AZS1E471BCAP ALUM HYBRID 470UF 20% 25V TH |
1,597 |
|
Datasheet
|
ZS | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 25 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
|
EEH-AZS1V331BCAP ALUM HYBRID 330UF 20% 35V TH |
2,483 |
|
Datasheet
|
ZS | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
|
63PZF56M10X9CAP ALUM HYBRID 56UF 20% 63V TH |
2,329 |
|
Datasheet
|
PZF | Bulk | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
35PZF270M10X9CAP ALUM HYBRID 270UF 20% 35V TH |
1,250 |
|
Datasheet
|
PZF | Bulk | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
PCJ1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD |
993 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0G152MCL1GSCAP ALUM POLY 1500UF 20% 4V SMD |
4,420 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNL1C102MDS1KXCAP ALUM POLY 1000UF 20% 16V TH |
162 |
|
Datasheet
|
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
EEH-ZK1E471PCAP ALUMHYB 470UF 20% 25V SMD |
3,237 |
|
Datasheet
|
ZK | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZC1K470VCAP ALUM HYBRID 47UF 20% 80V SMD |
446 |
|
Datasheet
|
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 204 mA @ 100 Hz | 1.36 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
