Aluminum - Polymer Capacitors(9659)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6SVPS22MCAP ALUM POLY 22UF 20% 6.3V SMD |
434 |
|
Datasheet
|
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 6.3 V | 200mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37 mA @ 120 Hz | 740 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
GYA1E221MCQ1GSCAP ALUMHYB 220UF 20% 25V SMD |
3,345 |
|
Datasheet
|
GYA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0J471MCO6CAP ALUM POLY 470UF 20% 6.3V TH |
2,529 |
|
Datasheet
|
PLF | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
GYA1V151MCQ1GSCAP ALUMHYB 150UF 20% 35V SMD |
1,855 |
|
Datasheet
|
GYA | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSG160ELL152MH20SCAP ALUM POLY 1.5MF 20% 16V TH |
1,213 |
|
Datasheet
|
NPCAP™-PSG | Bulk | Active | Polymer | 1.5 mF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
|
GYC1V221MCQ1GSCAP ALUMHYB 220UF 20% 35V SMD |
904 |
|
Datasheet
|
GYC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNL1C681MDS1CAP ALUM POLY 680UF 20% 16V TH |
504 |
|
Datasheet
|
FPCAP, RNL | Bulk | Active | Polymer | 680 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 700 mA @ 120 Hz | 7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole |
|
APXA160ARA330MF60GCAP ALUM POLY 33UF 20% 16V SMD |
4,032 |
|
Datasheet
|
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
25SEP10M+TSSCAP ALUM POLY 10UF 20% 25V TH |
2,396 |
|
Datasheet
|
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
RR71C331MDN1CAP ALUM POLY 330UF 20% 16V TH |
2,164 |
|
Datasheet
|
FPCAP, RR7 | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYB1V151MCQ1GSCAP ALUMHYB 150UF 20% 35V SMD |
1,451 |
|
Datasheet
|
GYB | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 345 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A750MV157M1JAAE022CAP ALUM POLY 150UF 20% 63V TH |
1,089 |
|
Datasheet
|
A750 | Bulk | Active | Polymer | 150 µF | ±20% | 63 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|
2R5SVPE330MYCAP ALUM POLY 330UF 20% 2.5V SMD |
15,213 |
|
Datasheet
|
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 193 mA @ 120 Hz | 3.86 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APD0809101M050RCAP ALUM POLY 100UF 20% 50V SMD |
3,182 |
|
Datasheet
|
APD | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 54mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

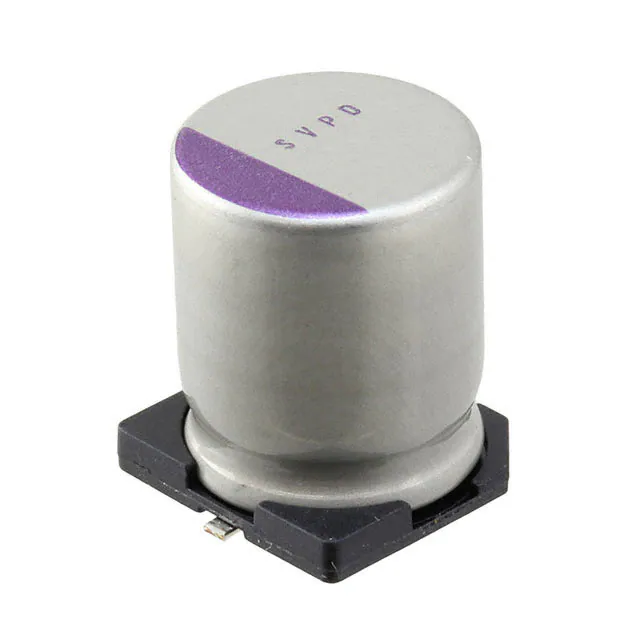

25SVPD82MCAP ALUM POLY 82UF 20% 25V SMD |
566 |
|
Datasheet
|
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 60.1 mA @ 120 Hz | 1.202 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXD500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
491 |
|
Datasheet
|
HXD | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-CX1D470RCAP ALUM POLY 47UF 20% 20V SMD |
7,918 |
|
Datasheet
|
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 47 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
EEH-ZA1V100RCAP ALUM HYBRID 10UF 20% 35V SMD |
4,857 |
|
Datasheet
|
ZA | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PCJ0E471MCL1GSCAP ALUM POLY 470UF 20% 2.5V SMD |
1,290 |
|
Datasheet
|
PCJ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEF-CX1D560RCAP ALUM POLY 56UF 20% 20V SMD |
8,232 |
|
Datasheet
|
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 56 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
