Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

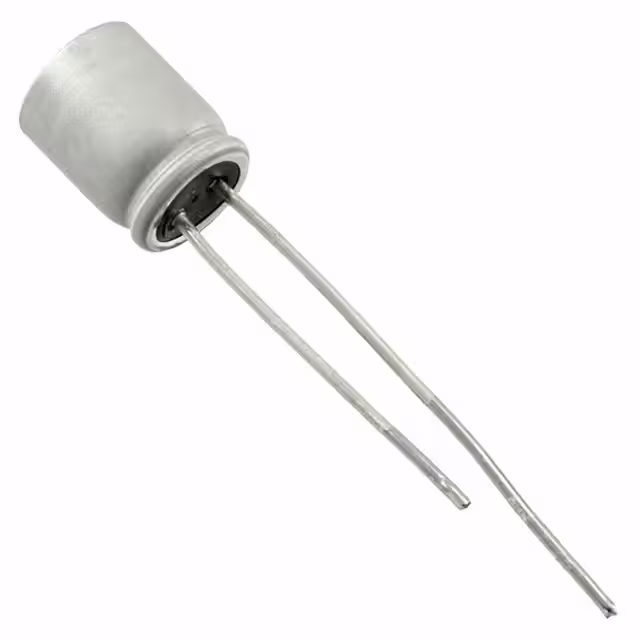

PLF0J221MDL4TDCAP ALUM POLY 220UF 20% 6.3V TH Nichicon |
1,756 |
|
Datasheet
|
PLF | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
RF80J331MDN1JTCAP ALUM POLY 330UF 20% 6.3V TH Nichicon |
3,970 |
|
Datasheet
|
FPCAP, RF8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
RF80E561MDN1PXCAP ALUM POLY 560UF 20% 2.5V TH Nichicon |
1,785 |
|
Datasheet
|
FPCAP, RF8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 420 mA @ 120 Hz | 4.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PLF0E821MCO8TDCAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
1,069 |
|
Datasheet
|
PLF | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
RL80G821MDN1CAP ALUM POLY 820UF 20% 4V TH Nichicon |
598 |
|
Datasheet
|
FPCAP, RL8 | Bulk | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
RL81C181MDN1CAP ALUM POLY 180UF 20% 16V TH Nichicon |
629 |
|
Datasheet
|
FPCAP, RL8 | Bulk | Active | Polymer | 180 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLF1D220MCL2TPCAP ALUM POLY 22UF 20% 20V TH Nichicon |
987 |
|
Datasheet
|
PLF | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
GYB1E560MCQ1GSCAP ALUM HYBRID 56UF 20% 25V SMD Nichicon |
2,940 |
|
Datasheet
|
GYB | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 195 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
GYA1E560MCQ1GSCAP ALUM HYBRID 56UF 20% 25V SMD Nichicon |
3,179 |
|
Datasheet
|
GYA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLF1C181MDO1TDCAP ALUM POLY 180UF 20% 16V TH Nichicon |
2,589 |
|
Datasheet
|
PLF | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
