Digital Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI83414AAA-IFDGTL ISOL 1500VRMS 4CH SPI 32DFN Skyworks Solutions Inc. |
248 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Capacitive Coupling | SPI | No | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 2.3µs, 2.9µs (Typ) | 10µs (Min) | 3µs, 3µs | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
|

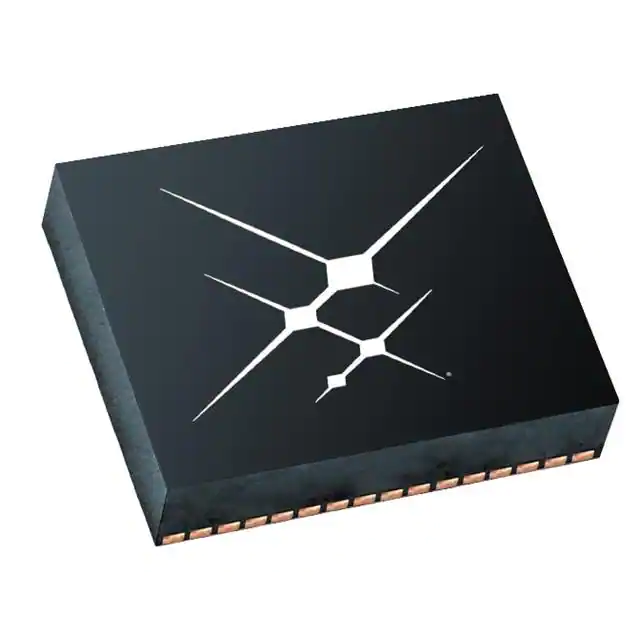

SI83408ADA-IFDGTL ISOL 1500VRMS 4CH SPI 32DFN Skyworks Solutions Inc. |
199 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Capacitive Coupling | SPI | No | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 2.3µs, 2.9µs (Typ) | 10µs (Min) | 3µs, 3µs | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
SI86S620BC-AS3.75 KVRMS ISOLATOR, 2 UNIDIRECT Skyworks Solutions Inc. |
192 |
|
Datasheet
|
Si86S62x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 3750Vrms | 100kV/µs | 150Mbps | 13.5ns, 13.5ns | 2.5ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
SI83416BDA-IF2 CH, ISOLATED SMART SWITCH, SIN Skyworks Solutions Inc. |
260 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Magnetic Coupling | SPI | Yes | 2 | 2/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 3.7µs, 3.7µs | - | -, 3µs | 2.25V ~ 5.5V, 9V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
|
SI86S620BE-AS46.0 KVRMS ISOLATOR, 2 UNIDIRECTI Skyworks Solutions Inc. |
245 |
|
Datasheet
|
Si86S62x | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 6000Vrms | 100kV/µs | 150Mbps | 13.5ns, 13.5ns | 2.5ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SSO |
|
|
SI86SW41BC-IS13.75 KVRMS, EMI OPTIMIZED ISOLAT Skyworks Solutions Inc. |
476 |
|
Datasheet
|
Si86S6xx | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 3/1 | Unidirectional | 3750Vrms | 100kV/µs | 150Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86SW62BC-IS13.75 KVRMS ISOLATOR, 6 UNIDIRECT Skyworks Solutions Inc. |
480 |
|
Datasheet
|
Si86S6xx | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 6 | 5/1 | Unidirectional | 3750Vrms | 100kV/µs | 150Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI83401BAA-IF1 CH, ISOLATED SMART SWITCH, SOU Skyworks Solutions Inc. |
260 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Magnetic Coupling | SPI | Yes | 1 | 1/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 3.5µs, 4.5µs | - | 2µs, - | 2.25V ~ 5.5V, 9V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
|
SI83414BAA-IF4 CH. ISOLATED SMART SWITCH, SIN Skyworks Solutions Inc. |
260 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Magnetic Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 3.7µs, 3.7µs | - | -, 3µs | 2.25V ~ 5.5V, 9V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
|
SI83418AFA-IFDGTL ISOL 1500VRMS 4CH SPI 32DFN Skyworks Solutions Inc. |
520 |
|
Datasheet
|
- | 32-VFDFN Exposed Pad | Tray | Active | Capacitive Coupling | SPI | No | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 2.3µs, 2.9µs (Typ) | 10µs (Min) | 3µs, 3µs | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
